LNnT (C26H45NO21)

LNnT bmse001332 - Data

View large 3D structure

BMRB entry bmse001332

Entry DOI: doi:10.13018/BMSE001332
Data source: National Magnetic Resonance Facility at Madison - Maria Nesterova, Paulo F. Cobra, John L. Markley

NMR-STAR file:

bmse001332.str

NMR-STAR

interactive viewer

Structure file (mol/sdf):

bmse001332.mol

All files for

bmse001332

Time Domain Data:

bmse001332.zip

Sample and instrument details are given with the spectrum

Assigned chemical shifts

Set 1
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Atom IDValueAmbiguity Code
C124.91351
C263.6984
C363.75964
C462.54484
C562.76054
C6177.68131
C777.27924
C877.61734
C978.08484
C1071.06664
C1157.9071
C1271.26184
C1372.70224
C1472.85084
C1573.69024
C1674.89164
C1775.21224
C1876.50224
C1977.06744
C2080.8074
C2180.92614
C2284.78881
C2398.47121
C24105.52544
C25105.58224
C26105.64944
H492.031
H502.031
H512.031
H523.74931
H533.74931
H543.74931
H553.74931
H563.78924
H573.85234
H583.94864
H593.78924
H603.28444
H613.54014
H623.58334
H633.58664
H643.79911
H653.63644
H663.6634
H673.72944
H683.74274
H693.81914
H703.92534
H713.94194
H724.16114
H733.63314
H743.73274
H753.72281
H764.65751
H774.44344
H784.47954
H794.70354

Set 2
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Atom IDValueAmbiguity Code
C123.23641
C260.36444
C360.47664
C460.54464
C560.36444
C6169.59771
C774.87014
C875.24394
C975.60764
C1067.33474
C1155.51371
C1268.22434
C1369.58294
C1469.79944
C1570.60234
C1671.3554
C1772.13614
C1873.22664
C1974.71184
C2081.43664
C2181.95954
C2282.01691
C2392.06091
C24102.13964
C25103.60144
C26104.09794
H491.80121
H501.80121
H511.80121
H523.48954
H533.49214
H543.63084
H553.74374
H563.48954
H573.48954
H583.48954
H593.48954
H603.16694
H613.27664
H623.28054
H633.30014
H643.42531
H653.42554
H663.46464
H673.52934
H683.55084
H693.59594
H703.70164
H713.83284
H723.16694
H733.16694
H743.16694
H753.43131
H764.89011
H774.19144
H784.21984
H794.64664

NMR experiments

1: 1D 1H
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #1: 1D 1H
Download time domain data: bmse001332_1.zip

2: 2D 1H-1H TOCSY
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #2: 2D 1H-1H TOCSY
Download time domain data: bmse001332_2.zip

3: 1D 13C
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #3: 1D 13C
Download time domain data: bmse001332_3.zip

4: 1D DEPT90
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #4: 1D DEPT90
Download time domain data: bmse001332_4.zip

5: 1D DEPT135
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #5: 1D DEPT135
Download time domain data: bmse001332_5.zip

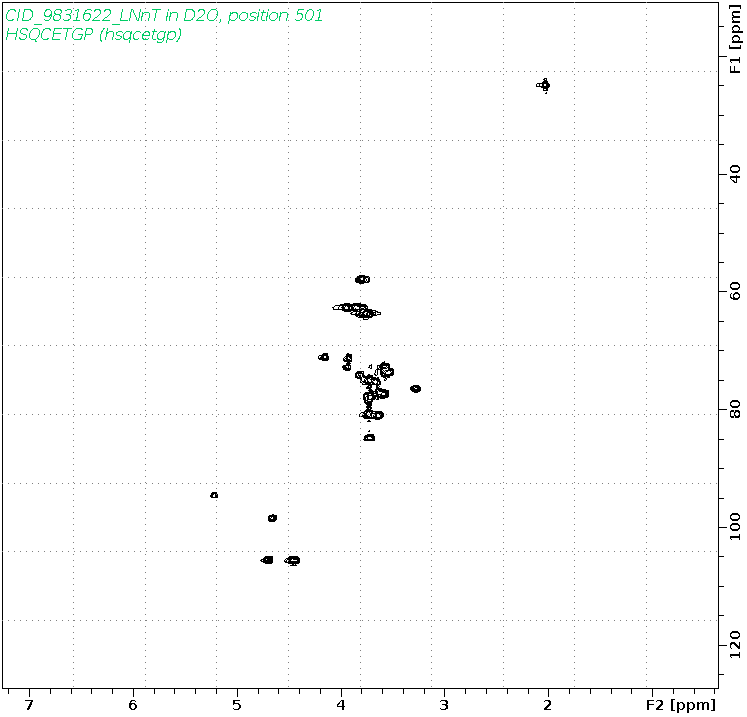

6: 2D 1H-13C HSQC
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #6: 2D 1H-13C HSQC
Download time domain data: bmse001332_6.zip

7: 2D 1H-13C HSQC SW small
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001332_7.zip

8: 2D 1H-13C HMBC
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #8: 2D 1H-13C HMBC
Download time domain data: bmse001332_8.zip

9: 2D 1H-1H COSY
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #9: 2D 1H-1H COSY
Download time domain data: bmse001332_9.zip

10: 2D 1H-13C HSQC-TOCSY-ADIA
Sample: 10mg in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #10: 2D 1H-13C HSQC-TOCSY-ADIA
Download time domain data: bmse001332_10.zip

11: 1D 1H
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #11: 1D 1H
Download time domain data: bmse001332_11.zip

12: 2D 1H-1H TOCSY
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #12: 2D 1H-1H TOCSY
Download time domain data: bmse001332_12.zip

13: 1D 13C
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #13: 1D 13C
Download time domain data: bmse001332_13.zip

14: 1D DEPT90
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #14: 1D DEPT90
Download time domain data: bmse001332_14.zip

15: 1D DEPT135
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #15: 1D DEPT135
Download time domain data: bmse001332_15.zip

16: 2D 1H-13C HSQC
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #16: 2D 1H-13C HSQC
Download time domain data: bmse001332_16.zip

17: 2D 1H-13C HSQC SW small
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001332_17.zip

18: 2D 1H-13C HMBC
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #18: 2D 1H-13C HMBC
Download time domain data: bmse001332_18.zip

19: 2D 1H-1H COSY
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #19: 2D 1H-1H COSY
Download time domain data: bmse001332_19.zip

20: 2D 1H-13C HSQC-TOCSY-ADIA
Sample: 10mg in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #20: 2D 1H-13C HSQC-TOCSY-ADIA
Download time domain data: bmse001332_20.zip
