Ascochitine (C15H16O5)

Ascochitine bmse001311 - Data

View large 3D structure

BMRB entry bmse001311

Entry DOI: doi:10.13018/BMSE001311
Data source: National Magnetic Resonance Facility at Madison - Maria Nesterova, Paulo F. Cobra, John L. Markley

NMR-STAR file:

bmse001311.str

NMR-STAR

interactive viewer

Structure file (mol/sdf):

bmse001311.mol

All files for

bmse001311

Time Domain Data:

bmse001311.zip

Sample and instrument details are given with the spectrum

Assigned chemical shifts

Set 1
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Atom IDValueAmbiguity Code
C112.00381
C218.20341
C312.41531
C427.86781
C5100.51461
C6158.2651
C736.74041
C8141.32661
C9117.34451
C10115.21521
C11179.44021
C12101.54841
C13177.99591
C14161.73281
C15174.17341
H210.90171
H220.90171
H230.90171
H241.31221
H251.31221
H261.31221
H272.22941
H282.22941
H292.22941
H301.70712
H311.75992
H326.20441
H338.9311
H343.12951

NMR experiments

1: 1D 1H
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #1: 1D 1H
Download time domain data: bmse001311_1.zip

2: 2D 1H-1H TOCSY
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

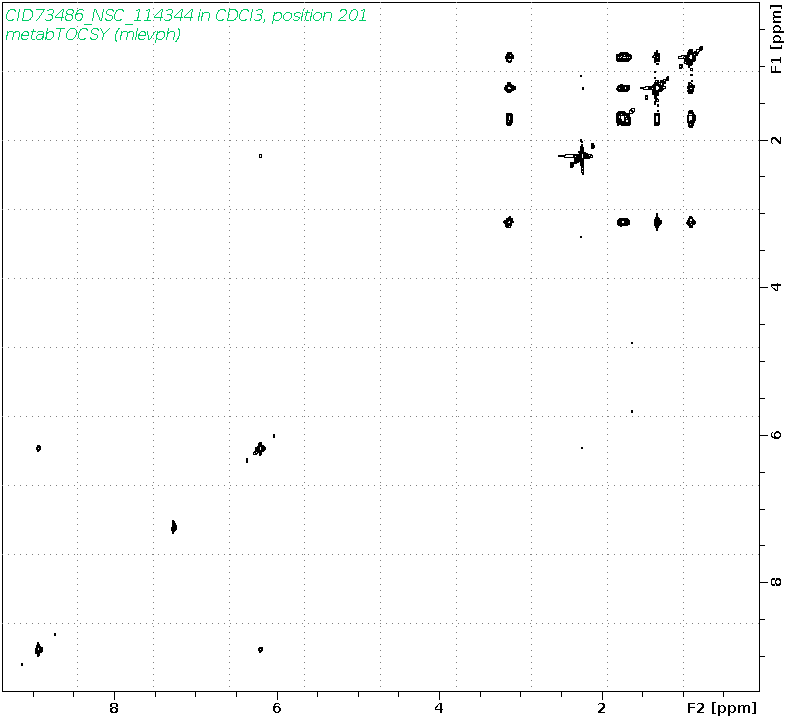

Spectrum for experiment #2: 2D 1H-1H TOCSY
Download time domain data: bmse001311_2.zip

3: 1D 13C
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #3: 1D 13C
Download time domain data: bmse001311_3.zip

4: 1D DEPT90
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #4: 1D DEPT90
Download time domain data: bmse001311_4.zip

5: 1D DEPT135
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #5: 1D DEPT135
Download time domain data: bmse001311_5.zip

6: 2D 1H-13C HSQC
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #6: 2D 1H-13C HSQC
Download time domain data: bmse001311_6.zip

7: 2D 1H-13C HSQC SW small
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001311_7.zip

8: 2D 1H-13C HMBC
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #8: 2D 1H-13C HMBC
Download time domain data: bmse001311_8.zip

9: 2D 1H-1H COSY
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #9: 2D 1H-1H COSY
Download time domain data: bmse001311_9.zip

10: 2D 1H-13C HSQC-TOCSY-ADIA
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #10: 2D 1H-13C HSQC-TOCSY-ADIA
Download time domain data: bmse001311_10.zip
