Pentoxifylline (C13H18N4O3)

View large 3D structure

BMRB entry bmse001293

Entry DOI: doi:10.13018/BMSE001293
Data source: National Magnetic Resonance Facility at Madison - Maria Nesterova, Paulo F. Cobra, John L. Markley

NMR-STAR file:

bmse001293.str

NMR-STAR

interactive viewer

Structure file (mol/sdf):

bmse001293.mol

All files for

bmse001293

Time Domain Data:

bmse001293.zip

Sample and instrument details are given with the spectrum

Assigned chemical shifts

Set 1
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Atom IDValueAmbiguity Code
C129.97421
C233.60781
C329.69351
C420.9451
C527.40451
C643.17731
C740.80471
C8141.42421
C9208.83391
C10107.63311
C11148.74641
C12155.26571
C13151.4541
H212.15761
H222.15761
H232.15761
H243.98421
H253.98421
H263.98421
H273.56951
H283.56951
H293.56951
H301.65221
H311.65221
H321.67221
H331.67221
H342.5151
H352.5151
H364.00191
H374.00191
H387.51171

NMR experiments

1: 1D 1H
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 1
Download time domain data: bmse001293_1.zip

2: 2D 1H-1H TOCSY
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 2
Download time domain data: bmse001293_2.zip

3: 1D 13C
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 3
Download time domain data: bmse001293_3.zip

4: 1D DEPT90
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 4
Download time domain data: bmse001293_4.zip

5: 1D DEPT135
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 5
Download time domain data: bmse001293_5.zip

6: 2D 1H-13C HSQC
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 6
Download time domain data: bmse001293_6.zip

7: 2D 1H-13C HSQC SW small
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001293_7.zip

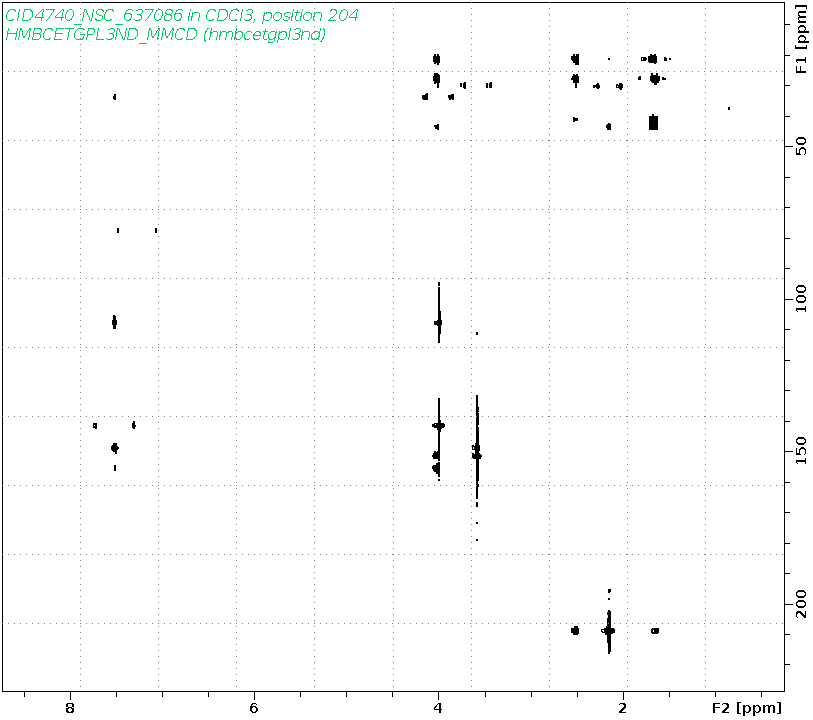

8: 2D 1H-13C HMBC
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 8
Download time domain data: bmse001293_8.zip

9: 2D 1H-1H COSY
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 9
Download time domain data: bmse001293_9.zip

10: 2D 1H-13C HSQC-TOCSY-ADIA
Sample: 5mg in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Array spectrum for 10
Download time domain data: bmse001293_10.zip
