3,4,5-trihydroxycyclohexene-1-carboxylic Acid (C7H10O5)

3,4,5-trihydroxycyclohexene-1-carboxylic Acid bmse001179 - Data

View large 3D structure

BMRB entry bmse001179

Entry DOI: doi:10.13018/BMSE001179
Data source: National Magnetic Resonance Facility at Madison - Maria Nesterova, Lawrence J. Clos, Christopher Stancic, Mark E. Anderson, John L. Markley

NMR-STAR file:

bmse001179.str

NMR-STAR

interactive viewer

Structure file (mol/sdf):

bmse001179.mol

All files for

bmse001179

Time Domain Data:

bmse001179.zip

View the GISSMO record for this entry.

Sample and instrument details are given with the spectrum

Assigned chemical shifts

Set 1
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Atom ID	Value	Ambiguity Code
C6	70.232	1
C5	66.8644	1
C4	65.4897	1
C2	29.8274	1
C3	128.2561	1
C1	138.9926	1
C7	168.031	1
H21	3.554	1
H20	3.8369	1
H19	4.201	1
H22	2.0215	2
H18	2.3895	2
H17	6.5704	1

NMR experiments

1: 1D 1H
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001179_1.zip

2: 2D 1H-1H TOCSY
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #2: 2D 1H-1H TOCSY

Download time domain data: bmse001179_2.zip

3: 1D 13C
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001179_3.zip

4: 1D DEPT90
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001179_4.zip

5: 1D DEPT135
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001179_5.zip

6: 2D 1H-13C HSQC
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #6: 2D 1H-13C HSQC

Download time domain data: bmse001179_6.zip

7: 2D 1H-13C HSQC SW small
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001179_7.zip

8: 2D 1H-13C HMBC
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #8: 2D 1H-13C HMBC

Download time domain data: bmse001179_8.zip

9: 2D 1H-1H COSY
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

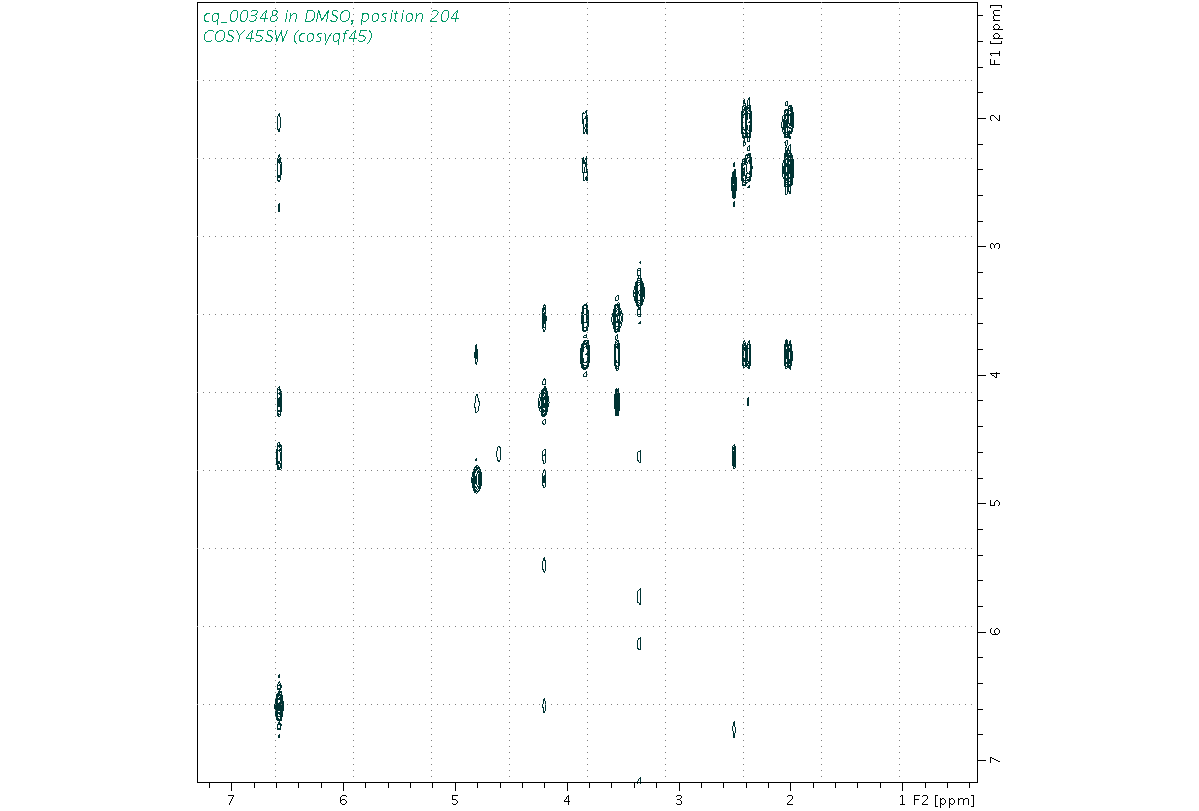

Spectrum for experiment #9: 2D 1H-1H COSY

Download time domain data: bmse001179_9.zip

10: 2D 1H-13C HSQC-TOCSY-ADIA
Sample: 100mM in DMSO, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #10: 2D 1H-13C HSQC-TOCSY-ADIA

Download time domain data: bmse001179_10.zip
