6-Methylhept-5-en-2-one (C8H14O)

6-Methylhept-5-en-2-one bmse001148 - Data

View large 3D structure

BMRB entry bmse001148

Entry DOI: doi:10.13018/BMSE001148
Data source: National Magnetic Resonance Facility at Madison - Maria Nesterova, Lawrence J. Clos, Christopher Stancic, Mark E. Anderson, John L. Markley

NMR-STAR file:

bmse001148.str

NMR-STAR

interactive viewer

Structure file (mol/sdf):

bmse001148.mol

All files for

bmse001148

Time Domain Data:

bmse001148.zip

View the GISSMO record for this entry.

Sample and instrument details are given with the spectrum

Assigned chemical shifts

Set 1
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Atom IDValueAmbiguity Code
C422.50441
C643.62961
C5122.63981
C7132.77941
C8209.0121
C117.55222
C225.63872
C329.83871
H192.25012
H202.45612
H222.25922
H232.4522
H215.06091
H121.61312
H111.61312
H101.61312
H141.67332
H131.67332
H151.67332
H172.1361
H162.1361
H182.1361

NMR experiments

1: 1D 1H
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #1: 1D 1H
Download time domain data: bmse001148_1.zip

2: 2D 1H-1H TOCSY
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

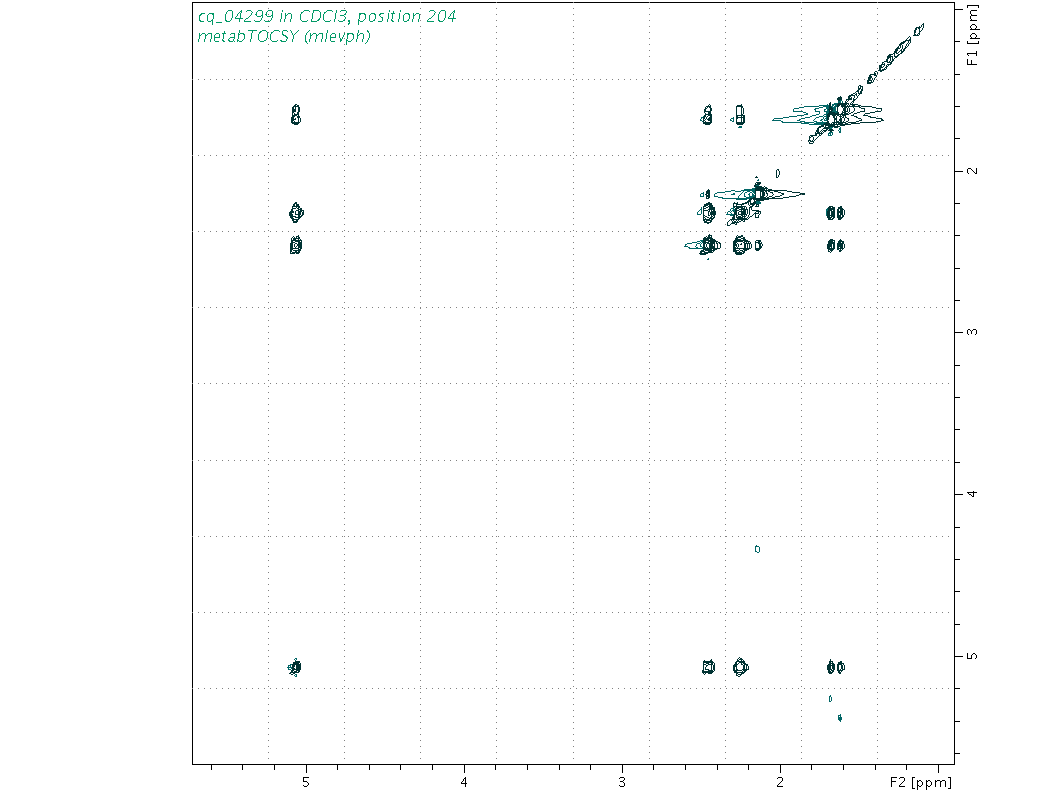

Spectrum for experiment #2: 2D 1H-1H TOCSY
Download time domain data: bmse001148_2.zip

3: 1D 13C
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #3: 1D 13C
Download time domain data: bmse001148_3.zip

4: 1D DEPT90
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #4: 1D DEPT90
Download time domain data: bmse001148_4.zip

5: 1D DEPT135
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #5: 1D DEPT135
Download time domain data: bmse001148_5.zip

6: 2D 1H-13C HSQC
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #6: 2D 1H-13C HSQC
Download time domain data: bmse001148_6.zip

7: 2D 1H-13C HSQC SW small
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Download time domain data: bmse001148_7.zip

8: 2D 1H-13C HMBC
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #8: 2D 1H-13C HMBC
Download time domain data: bmse001148_8.zip

9: 2D 1H-1H COSY
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #9: 2D 1H-1H COSY
Download time domain data: bmse001148_9.zip

10: 2D 1H-13C HSQC-TOCSY-ADIA
Sample: 100mM in Chloroform-d, ref: TMS
Conditions: temperature: 298K
Spectrometer: Bruker Avance III - 500MHz

Spectrum for experiment #10: 2D 1H-13C HSQC-TOCSY-ADIA
Download time domain data: bmse001148_10.zip
