L-Asparagine (C4H8N2O3)

View large 3D structure

BMRB entry bmse000912

Entry DOI: doi:10.13018/BMSE000912
Data source: National Magnetic Facility at Madison - Francisca Jofre, Mark E. Anderson, John L. Markley

NMR-STAR file:

bmse000912.str

NMR-STAR

interactive viewer

Structure file (mol/sdf):

bmse000912.mol

All files for

bmse000912

Time Domain Data:

bmse000912.zip

View the GISSMO record for this entry.

Sample and instrument details are given with the spectrum

NMR experiments

1: 1D 1H
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 1
Download time domain data: bmse000912_1.zip

2: 2D [1H,1H]-TOCSY
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 2
Download time domain data: bmse000912_2.zip

3: 1D DEPT90
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 3
Download time domain data: bmse000912_3.zip

4: 1D DEPT135
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 4
Download time domain data: bmse000912_4.zip

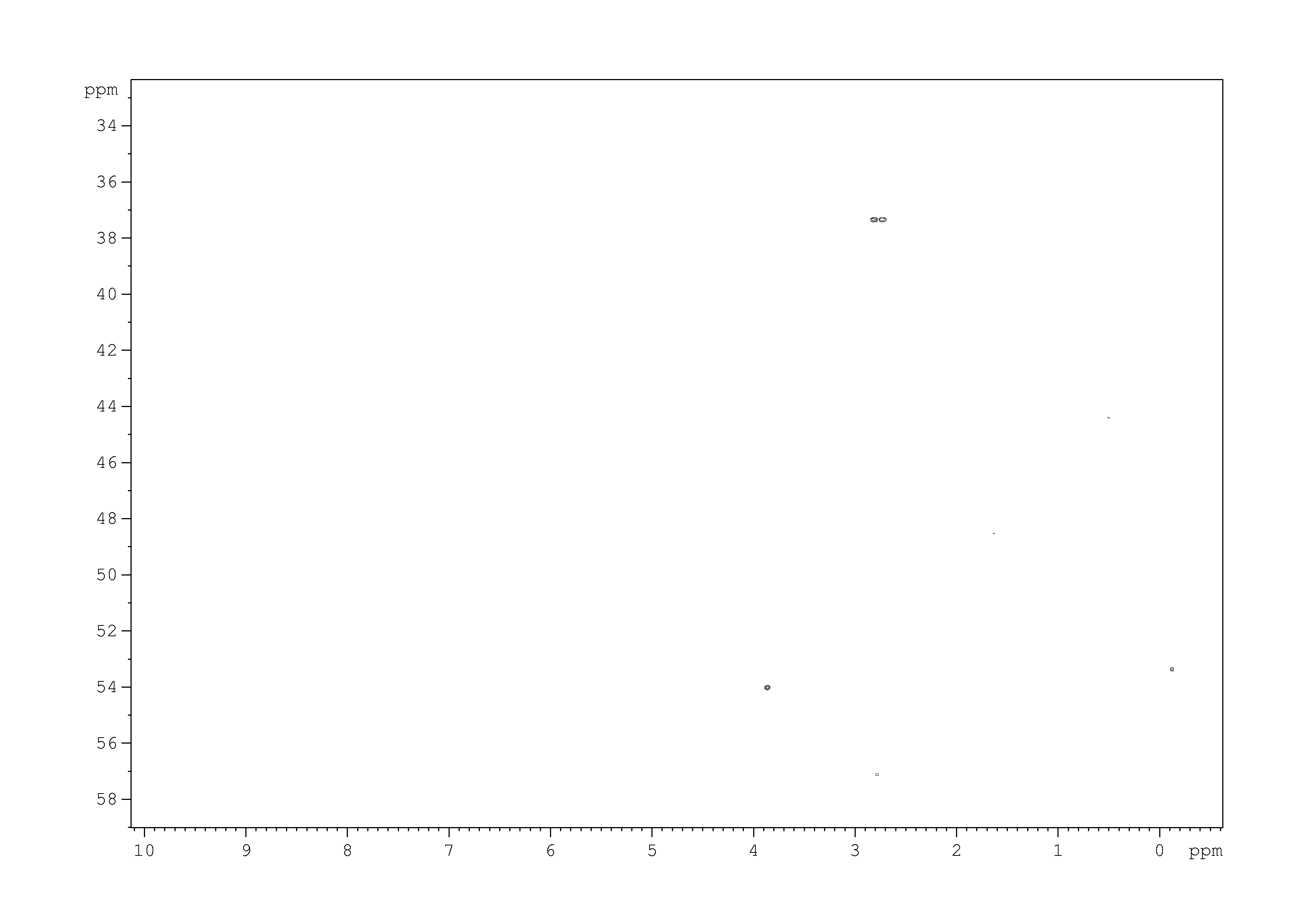

5: 2D [1H,13C]-HSQC
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 5
Download time domain data: bmse000912_5.zip

6: 2D [1H,13C]-HMBC
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 6
Download time domain data: bmse000912_6.zip

7: 2D [1H,1H]-COSY
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 7
Download time domain data: bmse000912_7.zip

8: 2D [1H,13C]-HMQC
Sample: 100mM in D2O, ref: DSS
Conditions: temperature: 298K, pH: 7.4
Spectrometer: Bruker DMX - 600MHz

Array spectrum for 8
Download time domain data: bmse000912_8.zip
